Hydrozine Generator
Hydrogen gas is hard to store and transport in large quantities. Hydrozine® solves this: formic acid as a liquid organic hydrogen carrier that stores up to 4 times as much hydrogen as pressurized tanks and is not highly flammable.
Hydrozine: liquid organic hydrogen carrier
Innovative new ways of generating, using and storing energy are of great importance to realize the energy transition from fossil to sustainable energy. For the generation of electricity, large-scale solar and wind energy are considered key ways to make the energy grid more sustainable. However, there are also situations where a connection to the grid is not easy or completely impossible. In such situations it is important to store in a storage medium such as, for example, the hydrogen gas.
However, hydrogen in gaseous form has the disadvantage that is not easy to store and transport in large quantities. To solve these problems, the liquid organic hydrogen carrier (LOHC) Hydrozine can be used.
What is Hydrozine
Hydrozine is a colorless liquid that stores up to 4 times as much hydrogen compared to pressurized tanks and is also safe because it is not highly flammable.
How is Hydrozine made
It can be produced from water and CO2 by means of electrolysis or by converting low-value biomass flows. Water and CO2 are used, as it were to transport energy from A to B.
Power generation technology
DENS has developed the technology in a modular way for the supply of power. Use is made of a reformer system, a PEM fuel cell system and a battery pack. The battery pack can be used as an independent energy supply and a hydrogen source can be connected separately to the fuel cell system. In addition, it is possible to connect solar panels or a windmill, so the system can use other energy sources. In addition to the stationary solution in the form of a generator, work is being done on the mobile application that can be built into larger equipment such as (lifting) cranes, excavators or wheel loaders.
The Hydrozine process
Click on each step to navigate through the diagram and learn how our process works.
01. Renewable energy
Renewable energy produced must be stored so that it can be used at any other time.
02. Production of Hydrozine
The production of Hydrozine takes place with three ingredients: renewable energy, water and biogenic CO2 (non-fossil carbon dioxide).
03. DENS reformer
In the DENS reformer, the Hydrozine is converted into H2 (hydrogen) and CO2 gas. This gas mixture is then fed to the fuel cell.
04. DENS Generator
The hydrogen from the gas mixture is converted into water vapor and electrical energy with the help of oxygen from the outside air. Because both the process and the conversion in the fuel cell take place at low temperatures, no harmful substances such as sulfur oxides, nitrogen oxides or particulate matter are formed. In addition, the process is completely quiet.
05. Renewable energy
The renewable energy stored in the Hydrozine can now be used anytime in a variety of applications.
06. Renewable and future-proof
The use of the fuel emits an equal amount of CO2 as H2O (water), making the entire use 100% renewable and 100% future-proof.

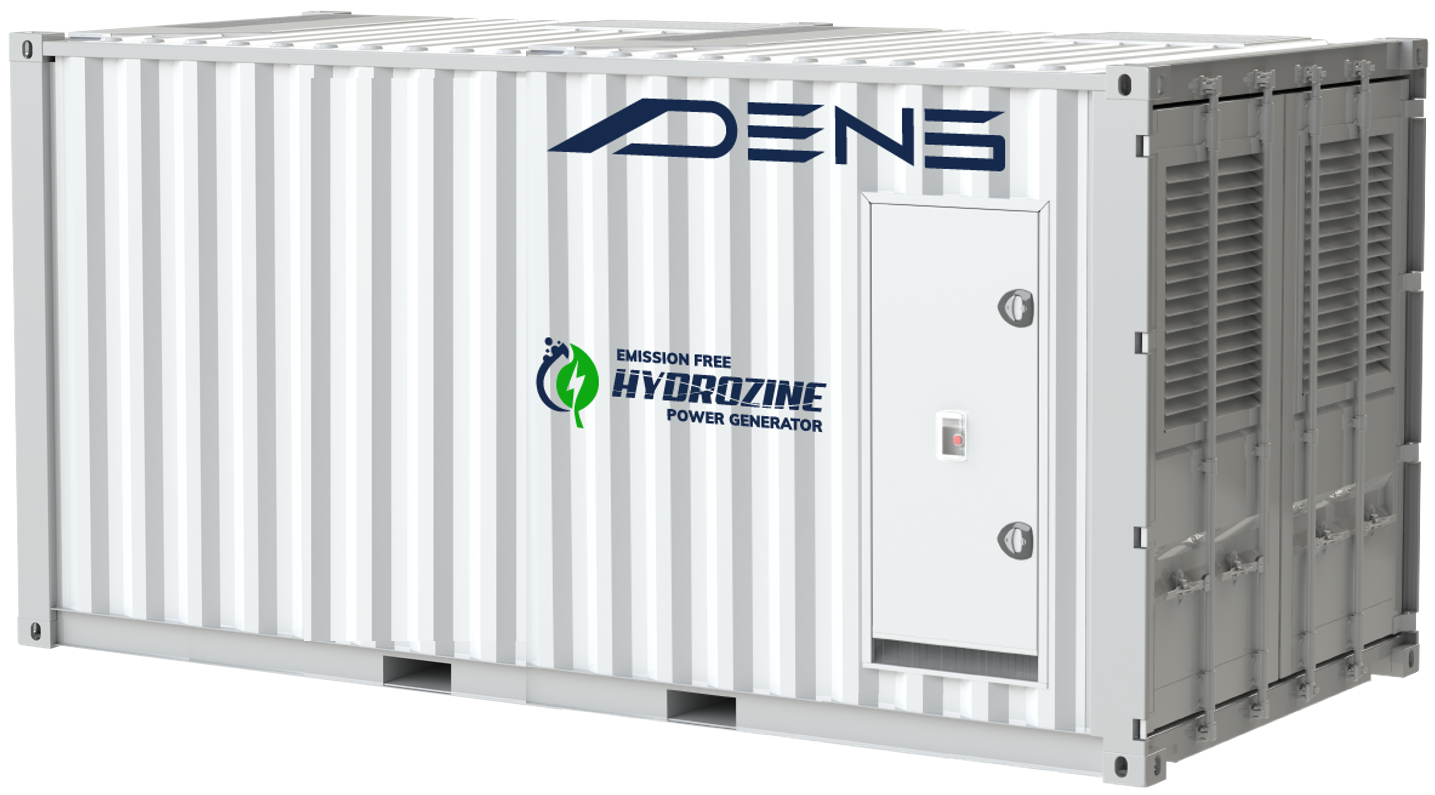

Hydrozine Generator
The DENS Hydrozine Generator is a clean and efficient power source for supplying electrical energy in places where a grid connection is not sufficient or not available.
The generator runs on hydrozine, a liquid emission free eco-fuel and produces electricity without harmful emissions. With the DENS Hydrozine Generator, you can reduce your environmental impact while still getting all the energy you need.
The Hydrozine generator is easy to use, provides reliable energy, and is perfect for construction sites, events, or any place where clean, emission free power is needed.
On the construction site, this eco friendly generator can be used to fast charge electrified equipment or as a power supply for lighting, pumps for groundwater drainage. At events such as festivals, the Hydrozine generator can be used as a power source or used to charge electric vehicles or as a an energy source for stage equipment such as lighting and sound installations.
These are of course just a few of the many possibilities.
Climate neutral
The Hydrozine generator can be used to load electrified equipment, construction, lighting or as a power supply for water pumps for groundwater drainage.
Fast charge
At events such as festivals, the Hydrozine generator can be used as a power source or used to charge electric vehicles such as motorbikes or visitors cars.
Digital monitoring
Remote monitoring of the system is possible by using 5G, Starlink or API. Maximum business continuity is the most important detail.
Liquid refueling
Hydrozine can store and transport large quantities of hydrogen in standard stainless steel or plastic packaging units. It is therefore very similar to that of conventional fuels (diesel or petrol).
